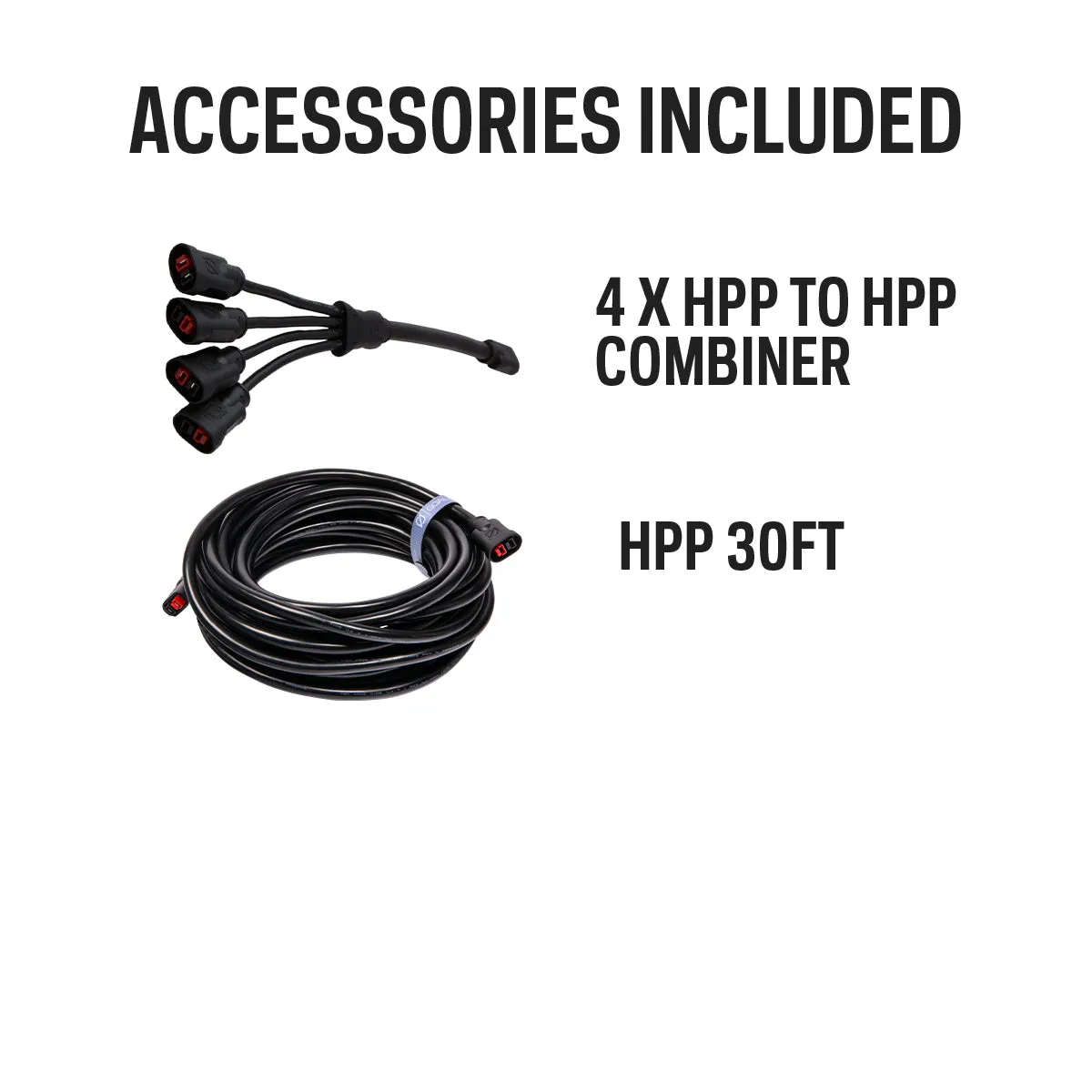

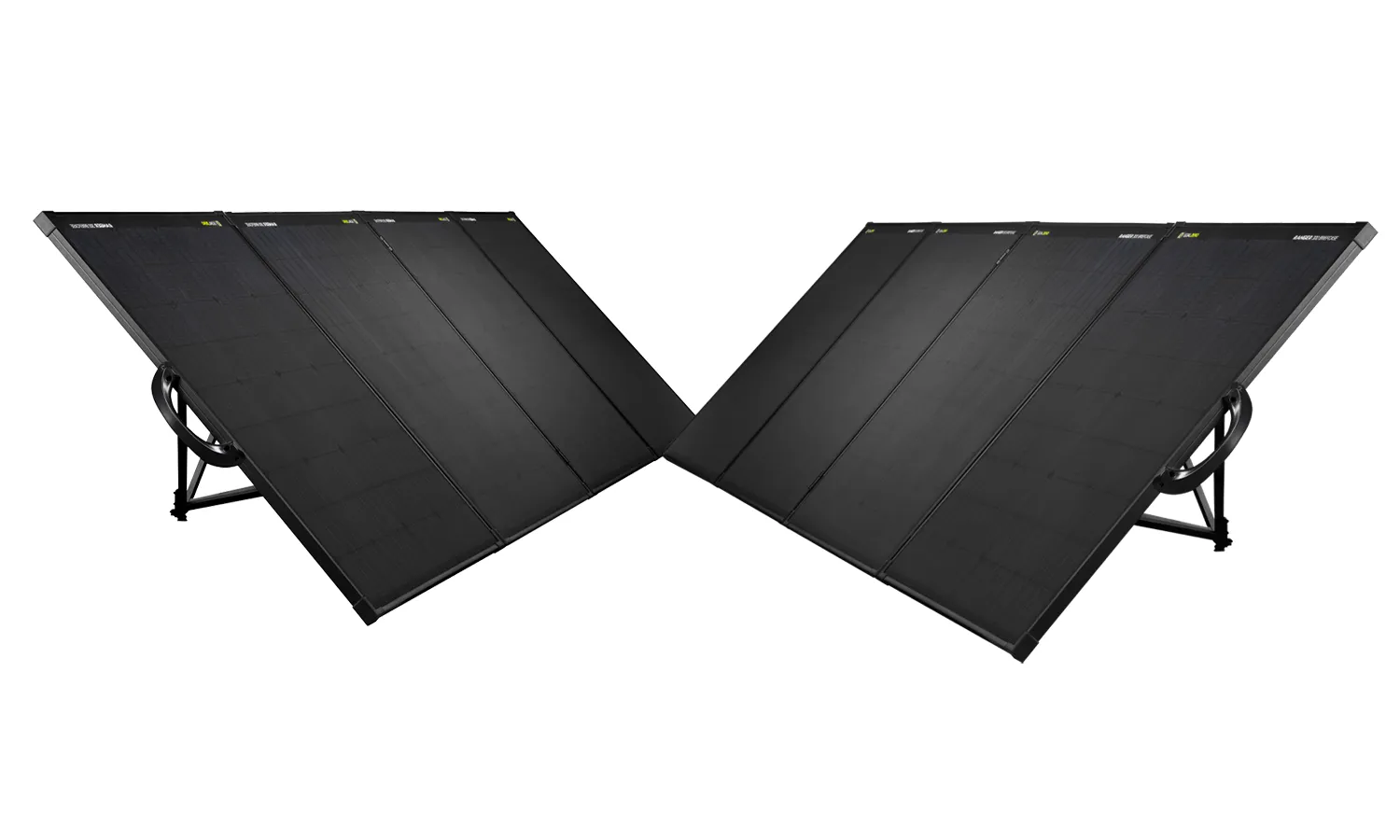

Best value solar charge kit for the Yeti 3000X. Maximize charge efficiency with two Ranger 300 Briefcases, a 4x High Power Port (HPP) Combiner, and 30 ft. HPP Extension Cable.
tech
CHARGE TIMES
- Yeti 1000 Lithium: 5-10 Hours
- Yeti 1000X: 4-8 Hours
- Yeti 1400 Lithium: 7-14 Hours
- Yeti 1500X: 6-12 Hours
- Yeti 3000 Lithium: 12-24 Hours
- Yeti 3000X: 12-24 Hours
- Yeti 6000X: 24-48 Hours
GENERAL
- KIT SKU: 44545
- Weight: 37.71 lbs (17.12 kg)
- Dimensions (folded): 31.26 x 23.39 x 3.8in (79.4 x 59.4 x 9.7cm)
- Dimensions (unfolded, without leg stand): 31.26 x94.29 x 0.9in (79.4 x 239.5 x 2.3cm)
- Cable Length: 6ft
- Cable Gauge: 12 AWG
- Warranty: 2 Years
PORTS
- High Power Port (6ft of 12AWG cable): 14-23V, up to 21A (300W max)
SOLAR
- Rated Power: 300W
- Open Circuit Voltage (Voc): 23.0V
- Maximum Power Point Voltage (Vmpp): 19.3V
box

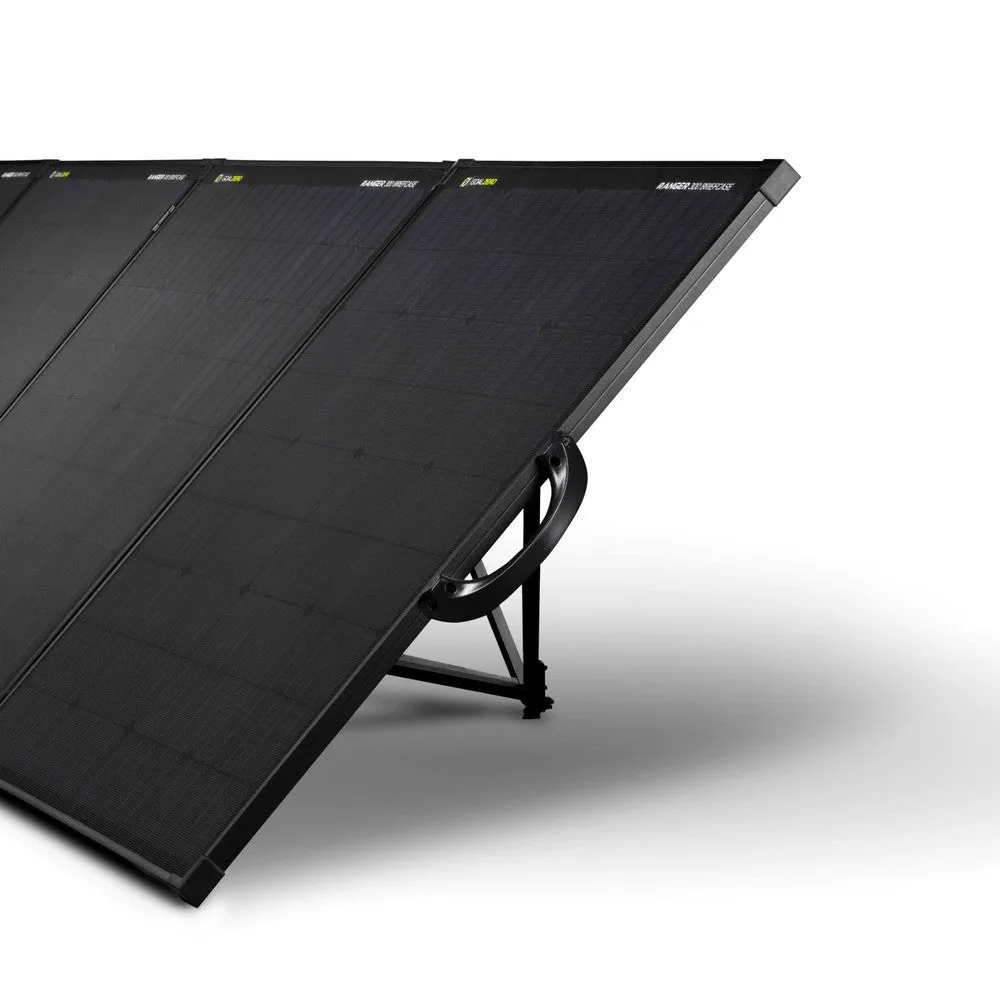

RANGER 300 BRIEFCASE HIGHLIGHTS

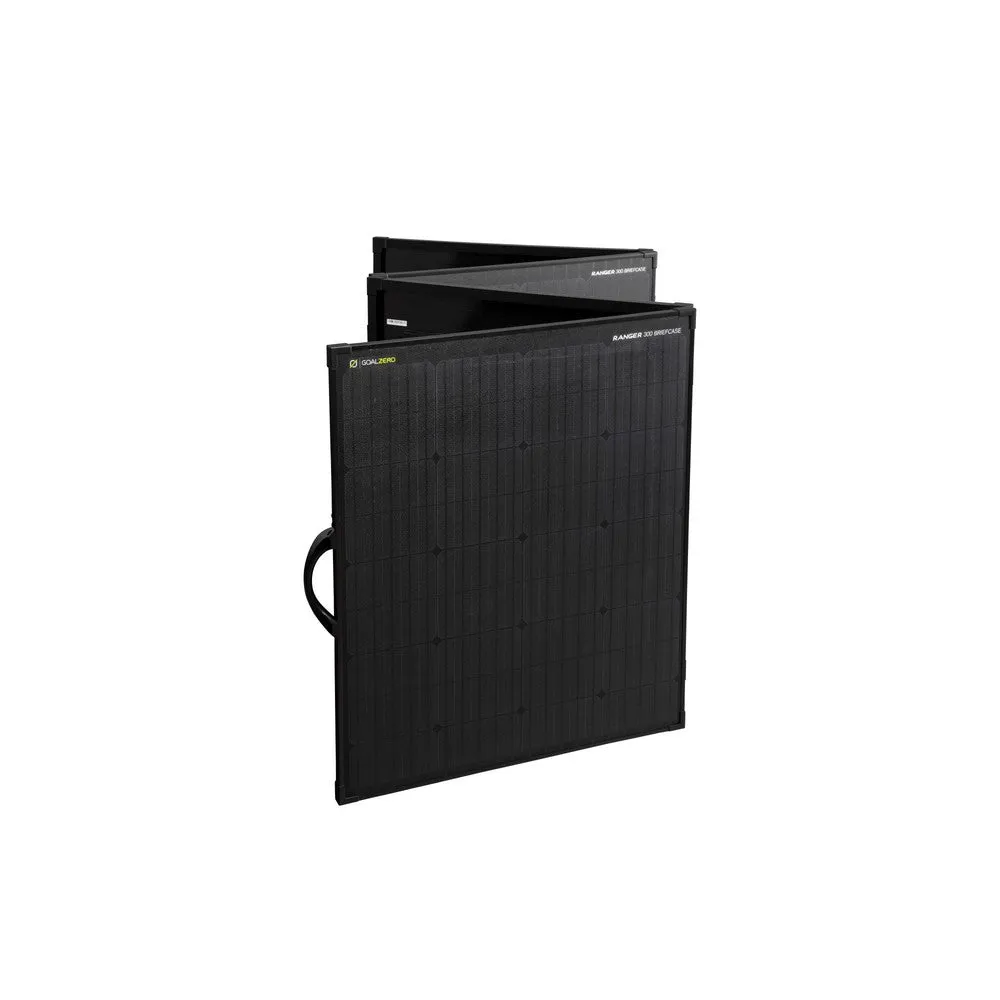

- Convenient, Foldable Design

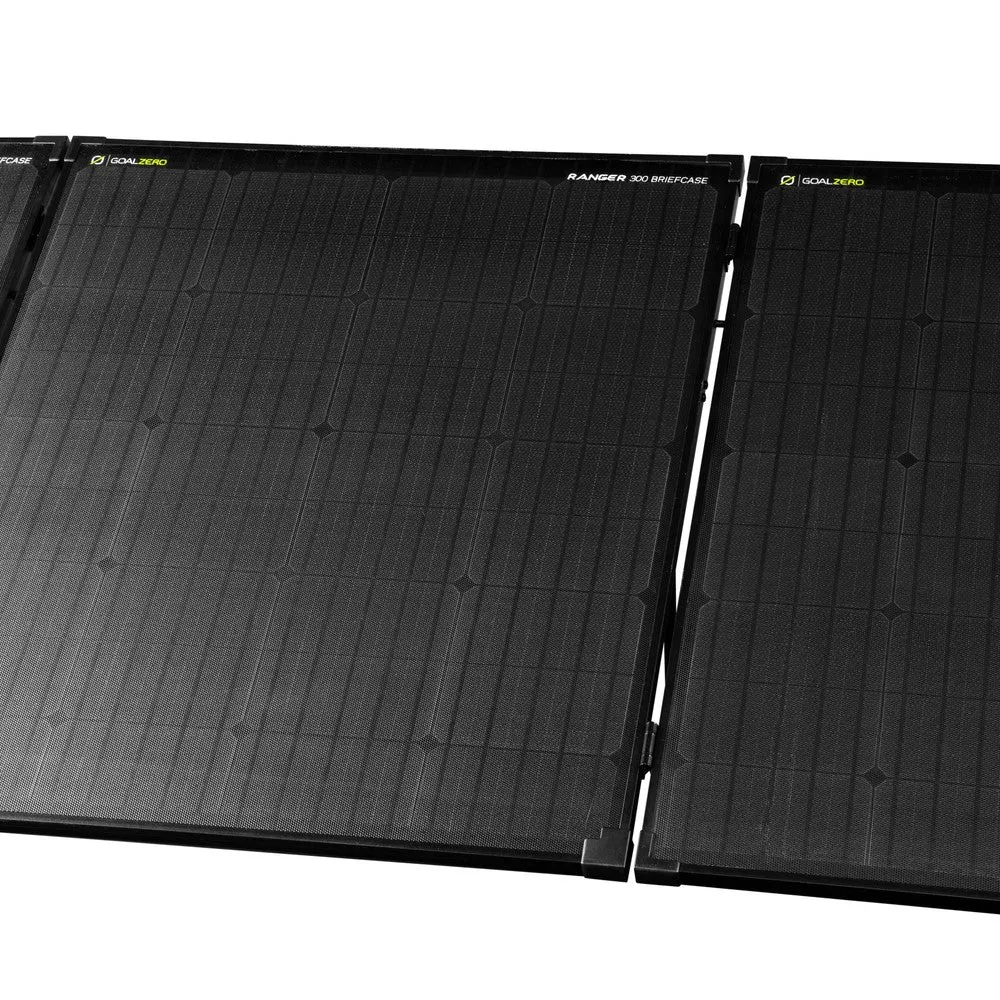

Four 75-Watt panels, totaling 300 Watts, chained together and connected at the hinge. Easily pack and transport the Ranger 300 from place to place, then store it when not in use. - Add Solar Power, Not Pounds
Designed with a thinner aluminum frame and PET polymer shield instead of glass, the Ranger 300 adds 100 Watts of solar to the Boulder 200 while shedding 3 lbs. - Easy to Use

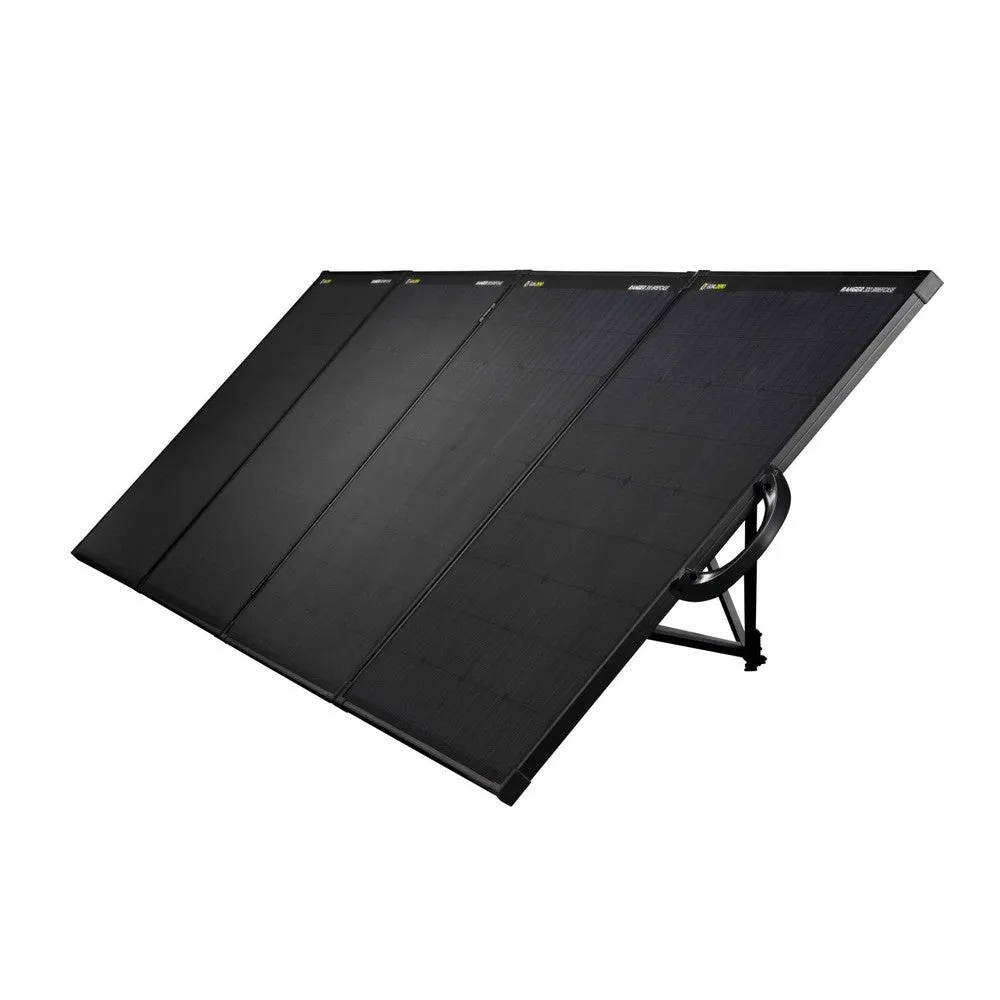

Featuring an innovative, patent-pending design, the Ranger 300 kickstand automatically folds out as you open the panel, allowing you to easily position the panel in place while solar charging. - Maintain Portability

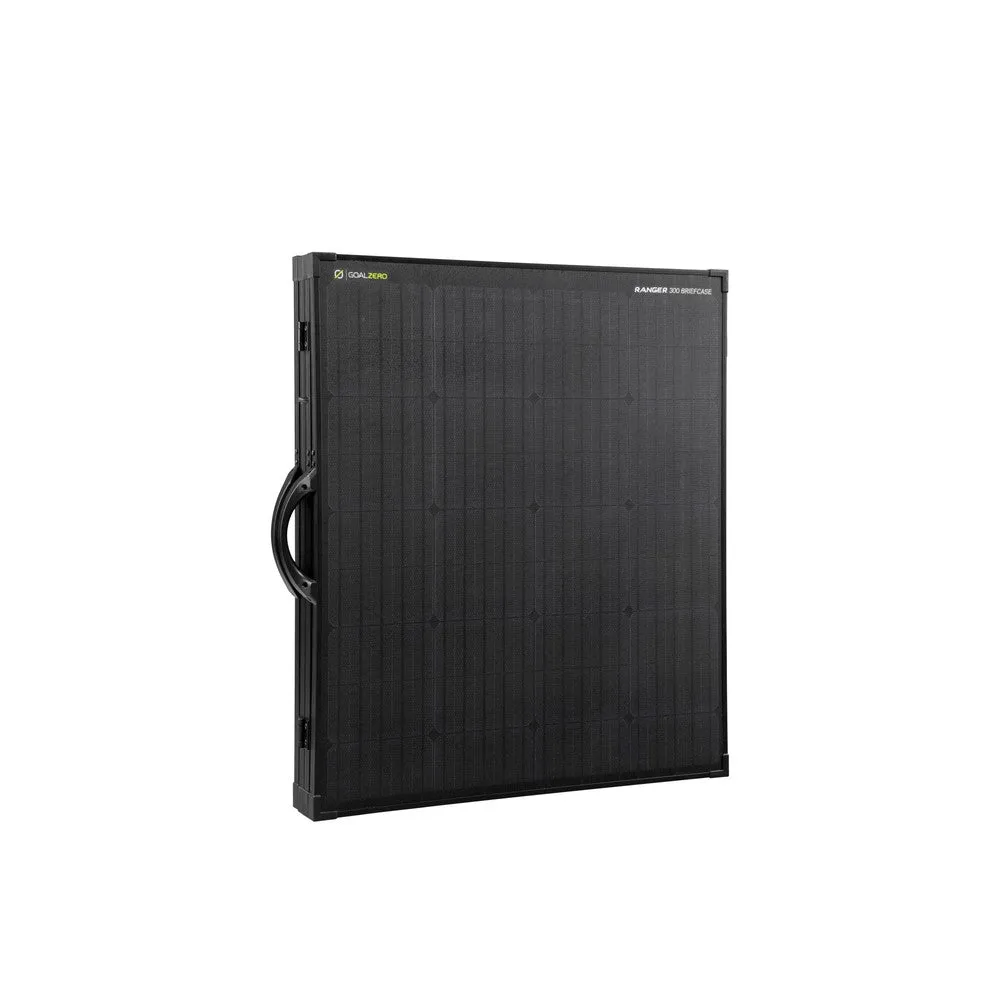

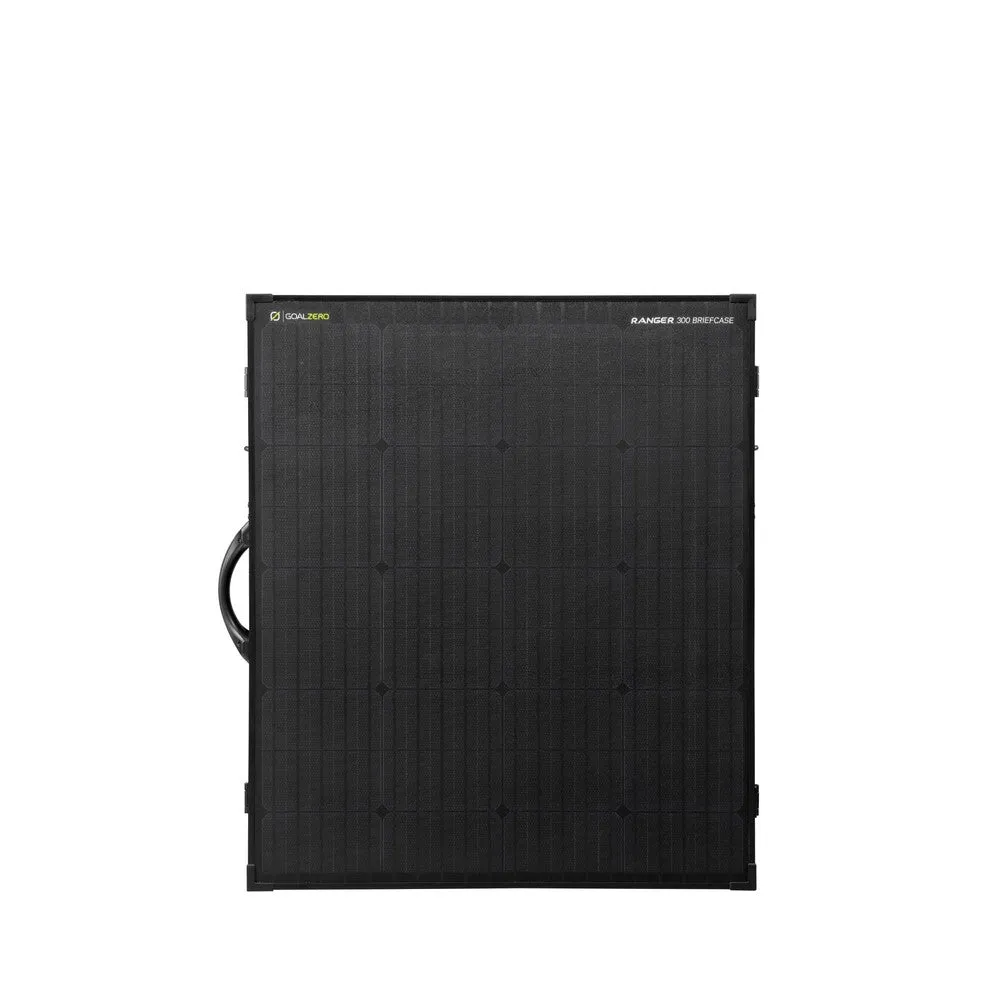

Built-in handles and magnetized corners make it easier to fold up your panel, pack in the car and go.
RECOMMENDED YETI PAIRINGS
Solar charge times vary and are dependent on many factors such as elevation, temperature, time of year, angle and position to the sun.
Tips & Tricks for using solar panels
- The solar panel does not hold a charge - it only produces power when it is exposed to sunlight and connected to a power station or bank.
- Optimize solar panel efficiency by positioning them south-facing at a 45-degree angle.
- For faster recharging, use multiple solar panels.
